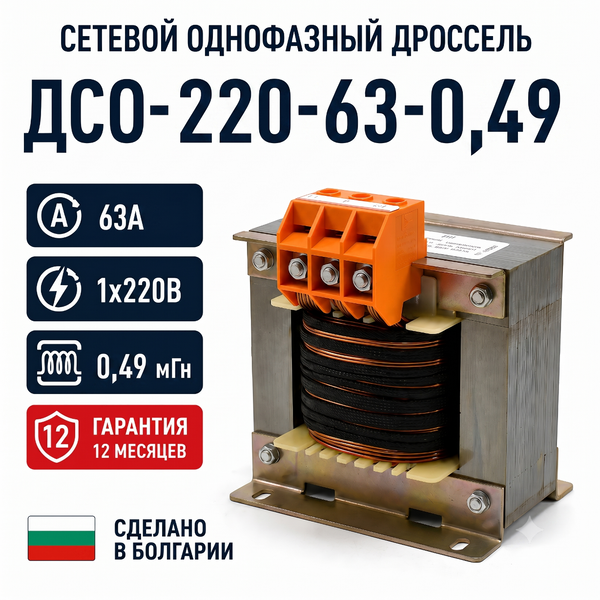

Single-phase AC line reactor DSO-220-63-0.49 (63 A, 1-phase 220 V, 0.49 mH inductance)
| Product | Line reactor |
| Order number | DSO-220-63-0.49 |
| Series | DSO |
| Inductance | 0.49 mH |
| Rated current | 63 Aac |
| Linear current | 94.5 Aac |
| Rated voltage range | 0 V to 230 V |
| Rated voltage | 230 V |
| Phases | 1 |
| Frequency range | 50 Hz to 60 Hz |
| Short circuit voltage | 4% @ 230 V |
| Motor or converter power | 11.6 kW / 15.56 HP |
| EN Insulation class | B (130°C) |
| UL Insulation class | class 130 |
| Duty Cycle | 100 % |
| Power loss | 37.60 W |
| Wire material | Copper |
